Upgraded boiler heating element available on request
RGB lights for machine status display
Double pressure gauge for boiler and pump pressure control
Optional
Automatic system for milk emulsion with adjustable temperature (MAT)
Individual temperature control for each delivery group (ITC)
Mix temperature for hot water delivery for infusions (AM)
Electric cup warmer
Management Service with scheduled technical interventions and water treatment system control (GA)
Gold body
Electronic with proportioned dose setting
Silver, Red, Black, White
Dimensions (mm) WxDxH
770X530X520
Weight (kg)
65
Boiler capacity (liters)
10
Colors
Power supply and absorption
Volts
230/400
Hz
50/60
W
3300
W+
3800/4500

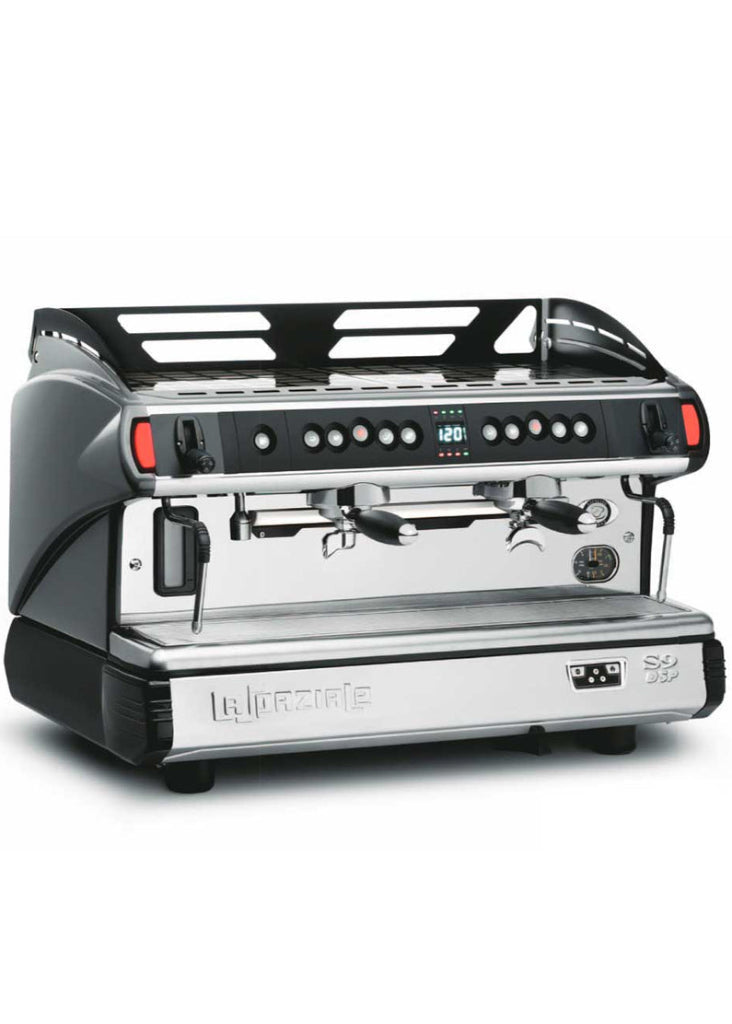

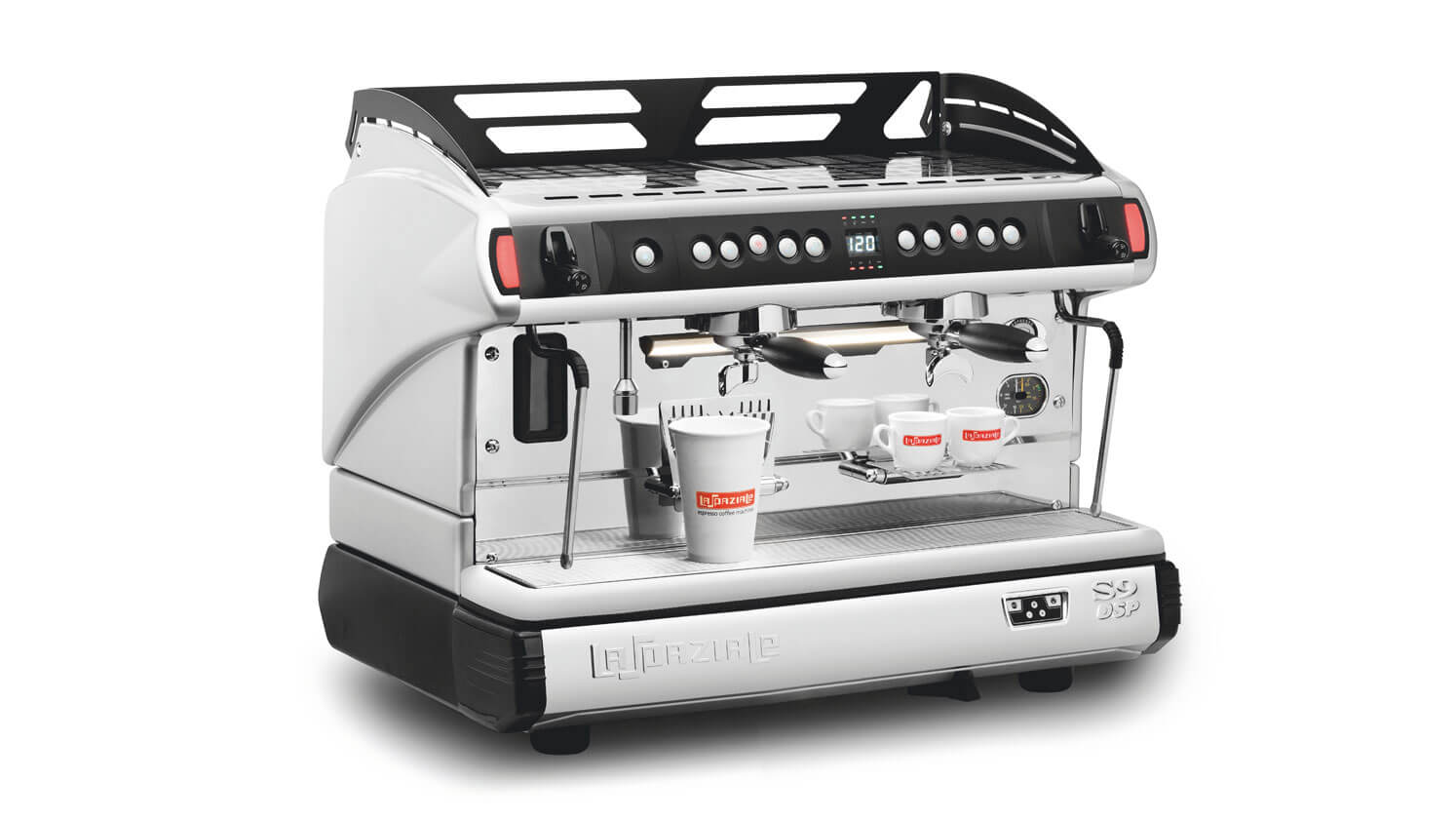

S9 DSP T.A.
Technical Features
Boiler temperature indicated by LED display
Automatic operating temperature boost function
ECO MODE Function
Cup grid lighting
Preset hot water delivery for infusions
Upgraded boiler heating element available on request
RGB lights for machine status display
Double pressure gauge for boiler and pump pressure control
Distance of 16 cm between delivery spouts and drip tray for “take away” cups
Grids for espresso cups
Optional
Automatic system for milk emulsion with adjustable temperature (MAT)
Individual temperature control for each delivery group (ITC)
Mix temperature for hot water delivery for infusions (AM)
Electric cup warmer
Management Service with scheduled technical interventions and water treatment system control (GA)
Gold body
Electronic with proportioned dose setting
Silver, Red, Black, White
Dimensions (mm) WxDxxH
770X530X600
Weight (kg)
70
Boiler capacity (liters)
10
Colors
Power supply and absorption
Volts
230/400
Hz
50/60
W
3300
W+
3800/4500

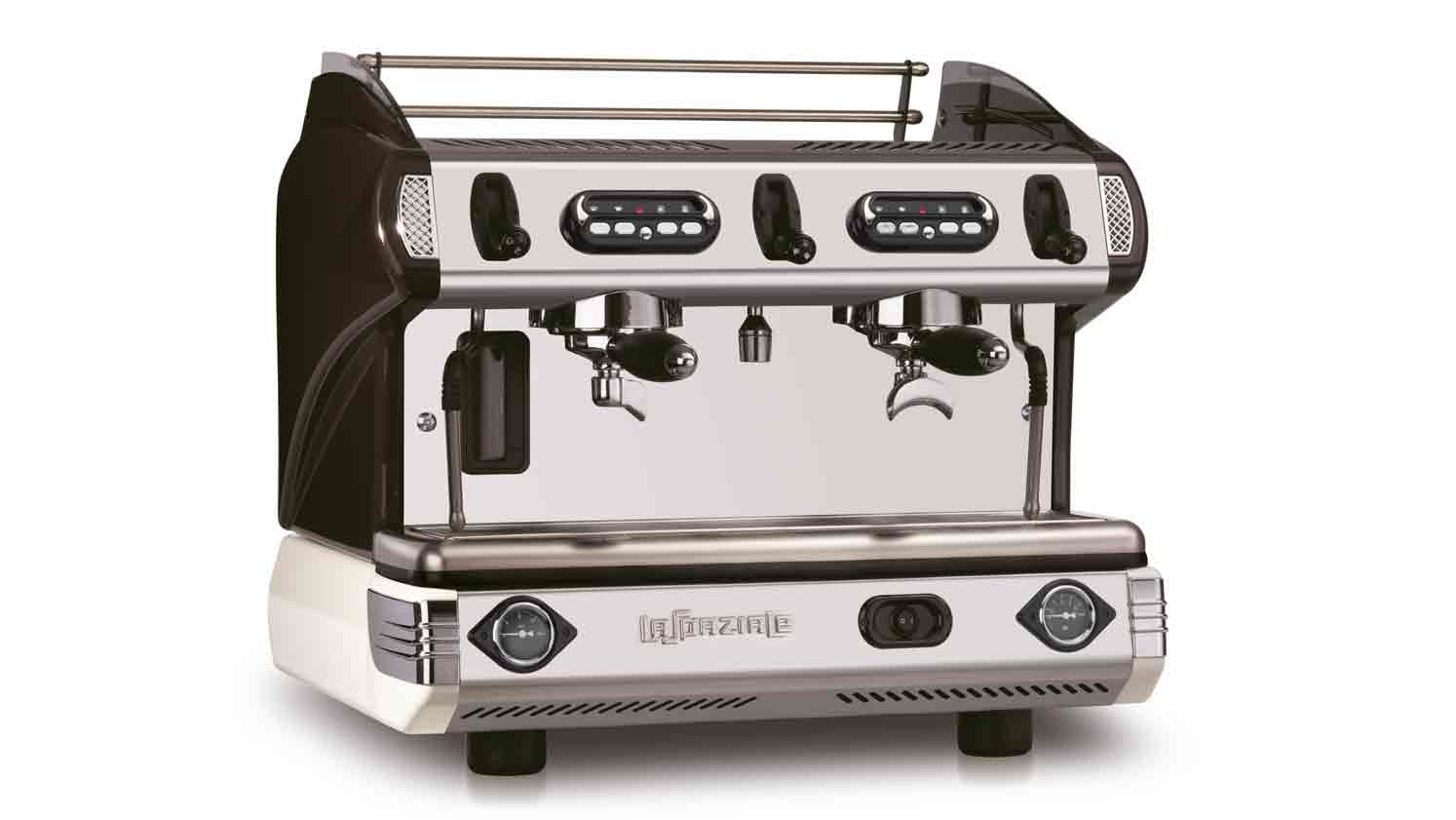

S9 Compact
Technical Features
Upgraded boiler heating element available on request
Double pressure gauge for boiler and pump pressure control
Electronic with proportioned dose setting
Dimensions (mm) WxDxH
580X530X520
Weight (kg)
54
Boiler capacity (liters)
5
Colors
Silver, Red, Black, Wthite
Power supply and power absorption
Volt
115/230
Hz
50/60
W
2300-3000
W+
3800

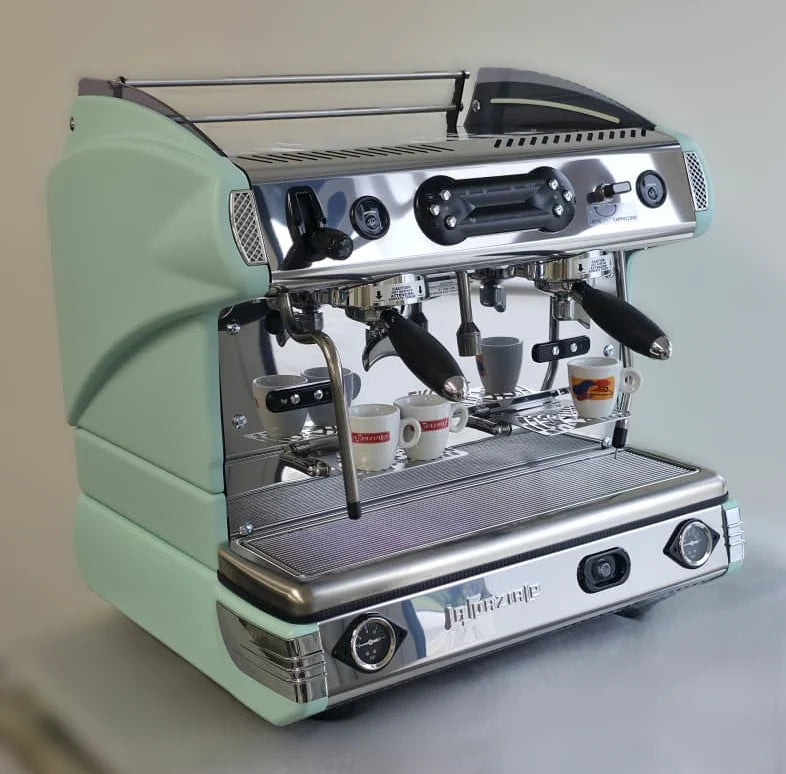

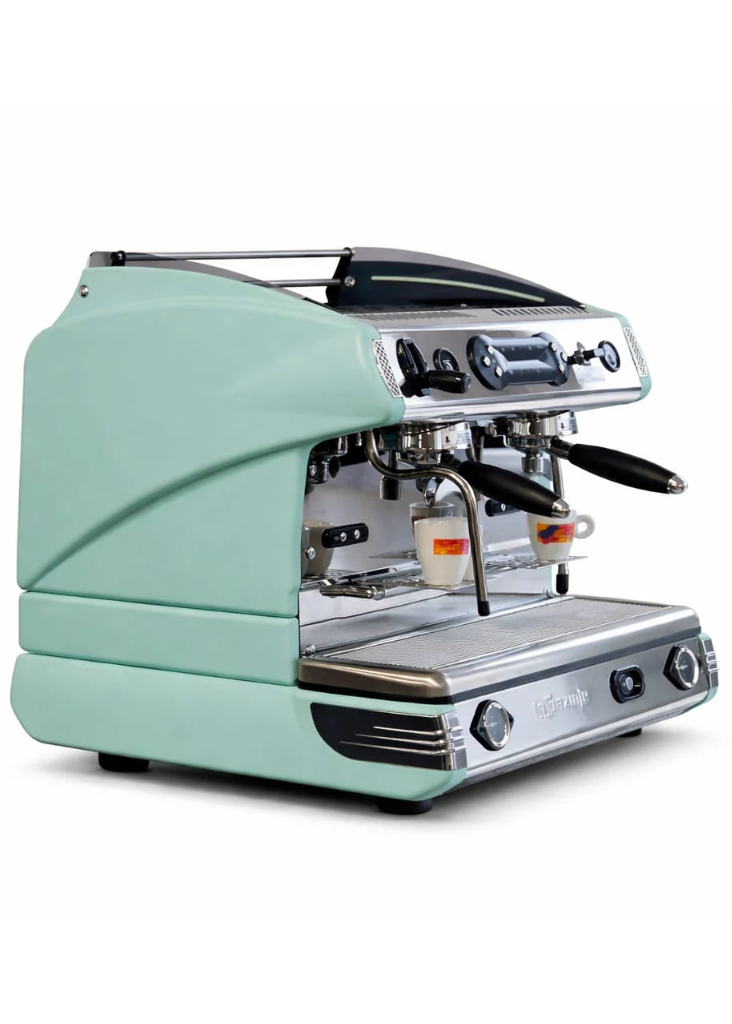

S9 Ekomat
FEATURES
Electronic espresso machine with automatic dose setting
Electronic boiler temperature control
Pressure gauge for water mains and pump
Boiler pressure gauge
Distance of 6.3" between delivery spouts and drip tray for to-go cups
ECO mode function
MAT Steam: Automatic system for milk emulsion with adjustable temperature and setting "latte/cappuccino".
MAT Steam wand: 30° angled steam wand to enhance the whirlpool effect and achieve a superior cup result.
Mix temperature for hot water delivery for infusions (AM)
Specifications
Dimensions: 22.8” (W) x × 20.8” (D) x 20.4” (H)
Weight: 119 lbs.
Boiler Size: 5L
Boiler Materials: Copper / Brass
Volts: 220
Watts: 3800

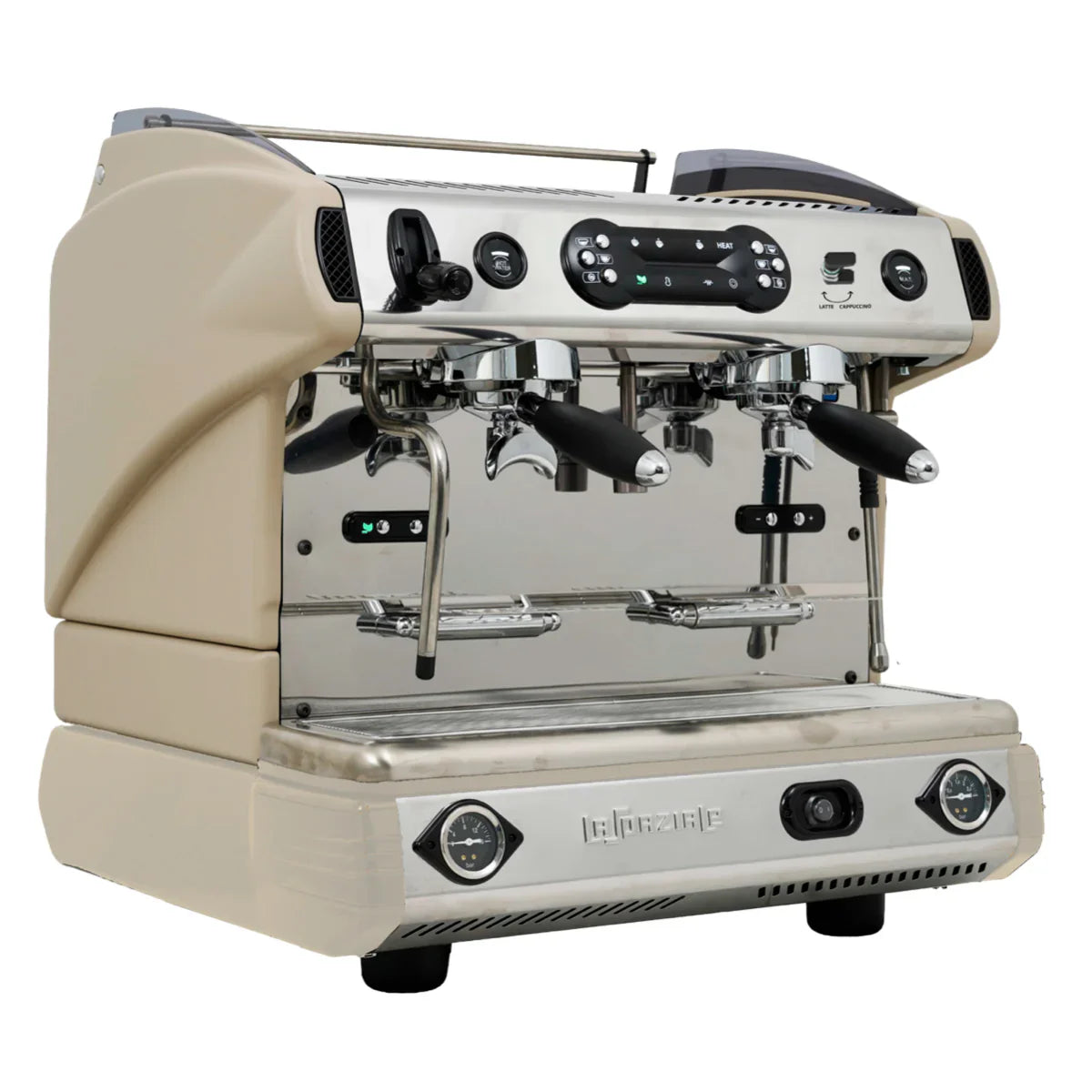

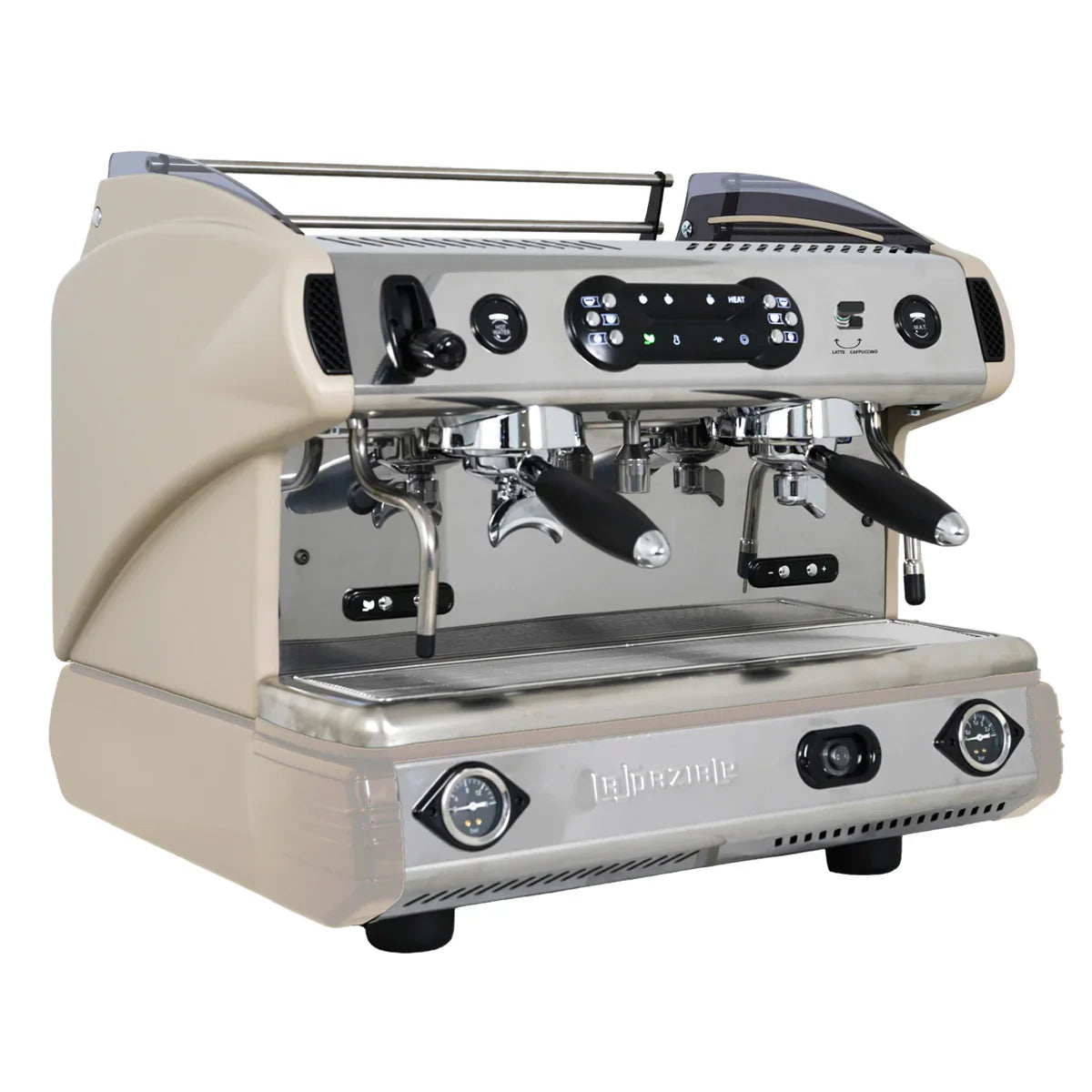

S9 Ekomat T.A.
FEATURES
Electronic espresso machine with automatic dose setting
Electronic boiler temperature control
Pressure gauge for water mains and pump
Boiler pressure gauge
Distance of 6.3" between delivery spouts and drip tray for to-go cups
ECO mode function
MAT Steam: Automatic system for milk emulsion with adjustable temperature and setting "latte/cappuccino".
MAT Steam wand: 30° angled steam wand to enhance the whirlpool effect and achieve a superior cup result.
Mix temperature for hot water delivery for infusions (AM)
Specifications
Dimensions (Tall): 22.8” (W) x × 20.8” (D) x 23.6” (H)
Weight: 119 lbs.
Boiler Size: 5L
Boiler Materials: Copper / Brass
Volts: 220
Watts: 3800
